Marine Propulsion Engines

Diesel Generating Sets

Engine Test Beds

Lift Motor Gear

Chillers and Cooling Towers

Large Fans and AHU’s

Pumps and Compressors

Vibrating Screens and Hoppers

Hammer Mills

Hydraulic & Milling Machines

Printing & Polishing Machines

Presses (Metal Forming)

Crushers

Food Processing & Textile Machinery

Shearing Machines

 Centrifugals

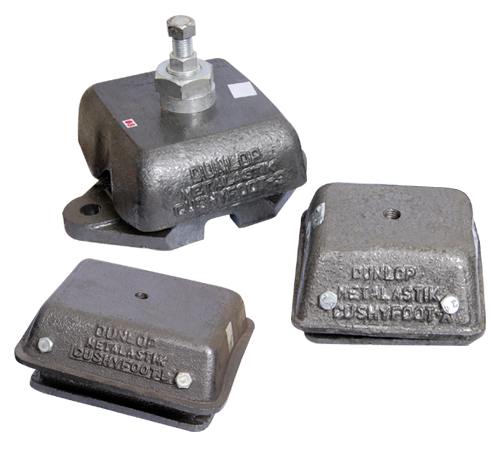

First grade natural rubber to metal bonded rectangular elements inclined to achieve maximum load and deflection using a combination of compression and shear loading.

Rubber elements effectively protected against oil contamination by the extended top skirt design of the to casting.

Two different horizontal stiffness axes enable optimum system characteristics and vibration isolation to be achieved using careful orientation of the mountings.

By using rubber elements of different stiffnesses, deflections of up to 6mm can be provided with the A&B series & up to 16mm with the HD series.

These Mounts can also be anchored to the floor through the holes provided in the base for machines producing high unbalance forces.

An Anti Skid plate is provided in the base of the mount to prevent machine walking.
