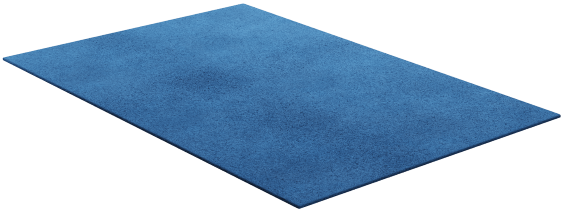

ELECTRICAL MATS
| Specification | Class A | Class B | Class C |
|---|---|---|---|
| Thickness | 2.0 MM | 2.5 MM | 3.0 MM |
| Maximum use Voltage | 3.3 KV | 11.0 KV | 33 KV |
| Ac Proof Voltage | 10 KV for 1 minutes | 10 KV for 1 minutes | 10 KV for 1 minutes |
| Ac Di Electric Strength | 30 KV | 45 KV | 65 KV |
| Maximum Leakage Current | 10 Ma | 10 Ma | 10 Ma |
| Minimum Insulation Resistance Measured by 5000 V megger | 1,00,000 MΩ | 1,00,000 MΩ | 1,00,000 MΩ |
| Minimum Tensile Strength (N/MM²) | 15 | 15 | 15 |
| Minimum Elongation (%) | 250 | 250 | 250 |
| Minimum Retention in Tensile and Elongation Strength from Original Value on Ageing at 70 + 1°C for 168 Hrs. | T.S. Min. 75% EL. Min. 75% | T.S. Min. 75% EL. Min. 75% | T.S. Min. 75% EL. Min. 75% |
| Minimum Retention in Tensile and Elongation Strength from Original Value When Immersed in Acid/Alkali/Diesel & Transformer Oil for 48 Hrs. | T.S. Min. 80% EL. Min. 80% | T.S. Min. 80% EL. Min. 80% | T.S. Min. 80% EL. Min. 80% |
| Low Temperature Resistance | YES | YES | YES |
| Flame Retardance | YES | YES | YES |
| Composition | Synthetic Elastomer | Synthetic Elastomer | Synthetic Elastomer |
| Colour | BLUE OR BLACK | BLUE OR BLACK | BLUE OR BLACK |
