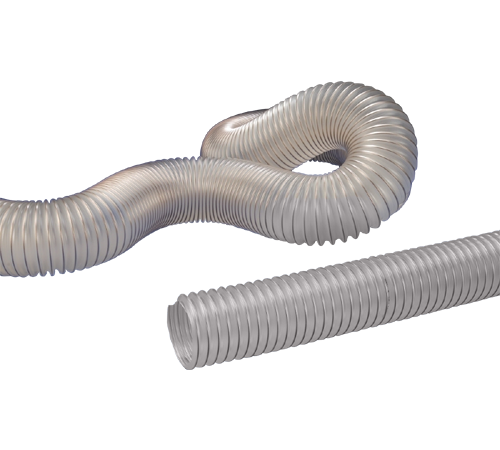

PU Flexible duct Hose

PU M Flexible Hose

TUBE: Ester-Polyurethane.

REINFORCEMENT: Copper Coated Spring Steel Wire Integrated In Wall.

TEMP RANGE: -40°C Approx to +90°C Approx, Short Time to +125°C Approx.

APPLICATIONS: For Extraction Arms & Dust Collection Equipment, For CNC Machining Areas, For Abrasive Solids Such As Dust, Powder, Fibers & Chip, For Industrial Air Movement & Fume Control.

MARKING ON THE HOSE: Size...mm PU M Flexible Hose 0.6mm.

PROPERTIES: Optimized Flow Properties, Microbe & Hydrolysis Resistant, Good Resistant to UV & Ozone, Chemical Resistant, Very Good Low Temperature Flexibility, Small Bending Radius, Excellent Compressibility 3:1, Kink-Proof, Good Tensile Anti-Static By Grounding the Spiral, Gas & Liquid Tight, Good Resistance to Abrasion.

FEATURES: Wall Thickness 0.6 mm.

150944249320171031
SIZE (INCH)SIZE (MM)SL (MTR)
12520
1.1/43220
1.1/24020
25120
2.1/46020
2.1/26320
37620
3.1/48020
3.1/29020
410215
4.3/811015
4.1/211515
4.3/412015
512715
5.1/214015
615215
6.3/816015
717515
820315
922515
1025415
1230515
1435415
