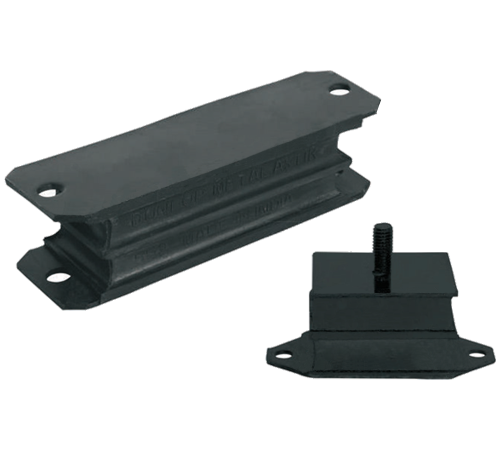

Sandwich Mounting

The Sandwich mounts comprise one or more layers of elastomer bonded to flat steel plates. They are designed to withstand very high compressive loads. They are very slim, large supporting surface area stackable mounts. The suspended equipment is free to move in all directions. High ratio of axial stiffness to radial stiffness. Very high axial loads.

150884049420171024

TYPICAL APPLICATIONS

  • Lift Head Gear

  • Engine Mounts on Road Vehicles

  • Vibrating Screens

  • Conveyor Systems

  • Hoppers

  • Free Standing Refrigeration Isolators

  • Heavy Machines Isolator (Lathes, Drilling Machines, etc.)

  • Coach Vehicle Body Isolators

  • Mobile Construction Plant

DESIGN FEATURES

  • Molded in First Grade Natural Rubber

  • Steel Metals, Etch printed on external surfaces

  • Sandwich mountings should not be used in tension or exposed to contamination by mineral oils
