Stainless Steel Assemblies

PTFE Hose Assemblies

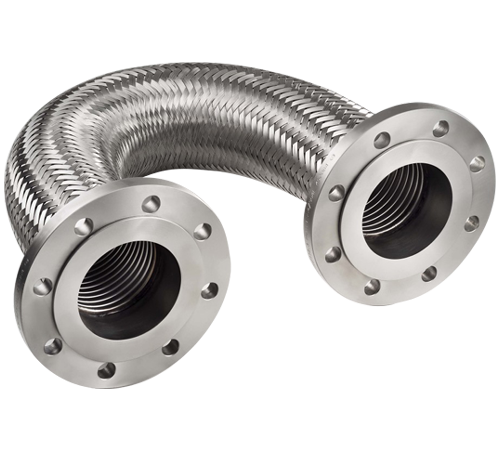

To give corrugated hose the ability to withstand pressure, stainless steel wire is braided over the hose. Hose may be single braided (one layer of braid) or double braided (two layers of braid) to achieve even greater working pressures. Braided braid is used on large diameter hose. Designing the proper braid for each type of corrugated hose requires sophisticated engineering to maintain the proper balance between the braid strength and the hose flexibility. kUMAR ENTERPRISE braid packages offer several advantages.

150813433320171016
Temperature In Degrees F321/316/316L304
7011
1500.970.96
2000.940.92
2500.920.91
3000.90.89
3500.880.86
4000.860.82
4500.830.8
5000.810.77
6000.740.73
7000.70.69
8000.660.64
9000.620.58
10000.60.56
11000.580.55
12000.560.5
13000.540.47
14000.50.44
15000.440.4
0.40.37
