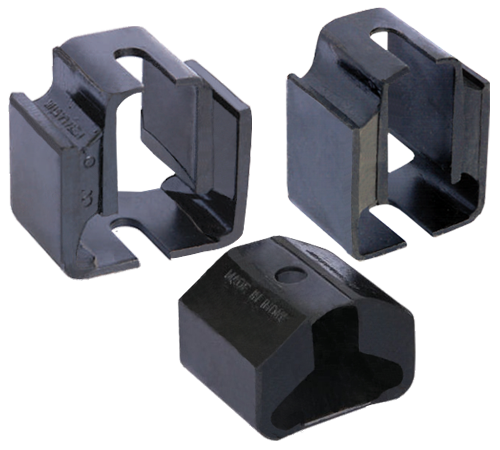

UU Shear
UU Shear mountings are most flexible and provide the best insulation when the rubber is working in shear i.e. in directions A & B. They are comparatively stiff in direction C as the rubber is in compression. Stiffness in this direction is a useful characteristic for applications where limitation of movement in one direction is required.
UU Shear are suitable for isolating vibrations from low speed machines and equipment. Protects sensitive and lightweight units from external shocks and vibrations.
UU Shear are easy to install.
TYPICAL APPLICATIONS
-
UU Shear mountings utilize bonded rubber in shear to permit relatively high deflections.
-
Provides excellent isolation of low frequencies.
-
On rotating equipment applications the soft axis should be at right angles to the shaft. On mobile applications the stiff axis should be aligned in the direction of travel.
DESIGN FEATURES
-
Molded in First Grade Natural Rubber
-
Steel Metals, Etch printed on external surfaces
-
Sandwich mountings should not be used in tension or exposed to contamination by mineral oils
