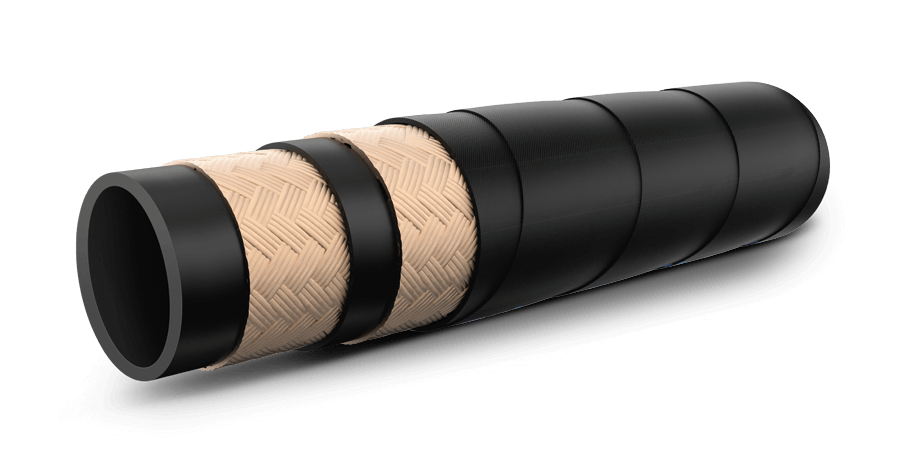

Water Hose LL

Hydraulic Hose Details

TUBE: Specially Compounded Synthetic Rubber, Black

REINFORCEMENT: Braiding of high strength synthetic fibre

COVER: Black synthetic rubber cover

TEMP RANGE: -40°C to +70°C

APPLICATIONS: For all air and water applications that require seamless conveyance in any industry.

PROPERTIES: Seamless | Uniform Thickness | Flexible

APPLICABLE STANDARDS: IS 444 - Type I & Type II

STANDARD COLOUR: Inner Tube - Black | Outer Cover - Black

ID (MM)	ID (INCH)	OD (MM)	WP (BAR)	WP (PSI)	BP (BAR)	BP (PSI)	BR (MM)	BR (INCH)	W (KG/MTR)	ML (MTR)
12	1/2	22	12	170	36	510	127	10	0.36	100
16	5/8	26	12	170	36	510	140	12	0.47	100
20	3/4	29.50	12	170	36	510	152	16.5	0.58	100
25	1	37	12	170	36	510	203	6	0.77	100
31	1.1/4	43.5	12	170	36	510	254	8	1	50
38	1.1/2	51.5	12	170	36	510	304	10	1.2	50
50	2	65	12	170	36	510	419	12	1.8	40
